Liquid Paint Coating-Colorful Coating

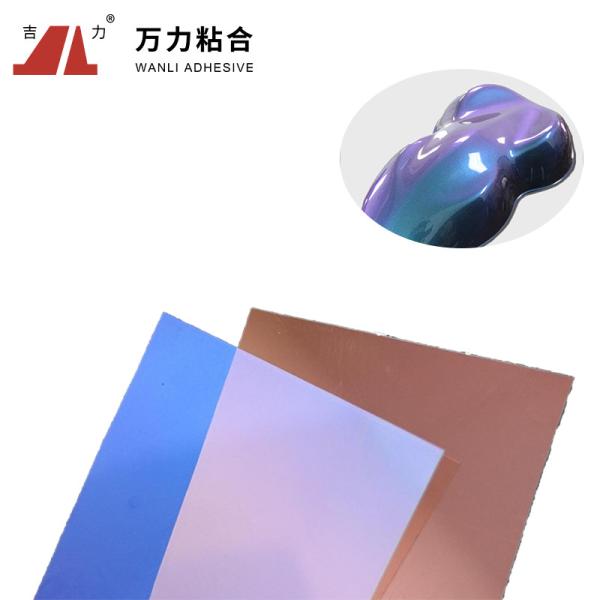

Wanli® chameleon liquid coating S-6103 for automotive re-finishing
is a light yellow liquid reversible paint, main content is acrylic
prepolymer. Spraying it onto PET film, it can reflects about 425nm
light after curing, presenting a beautiful blue purple appearance.
It is featured excellent moisture, acid, alkaline & abrasion
resistance. It protects cars against electrical shock & corrosion.
APPLICATION
Wanli® chameleon liquid coating S-6103 is used to change color of
car. Spray it onto PET film, paste the composited film to car as
car coat. It can reflects about 425nm light after curing,
presenting a beautiful blue purple appearance.
| Application Material | Functional Liquid Colorful Coating |
| Appearance | Yellowish Transparent Liquid |
| Component | Acrylic Prepolymer |
| Application Industry | Fuctional Coating |
| Solid Content | 20±0.5% |
| Liquid Specific Gravity | 0.95±0.3 |
| Viscosity | 0-20mPa·s@25℃ |
| Curing | 50~70℃Temperature Curing |
| Usage Scope | Automotive Re-finishing |
| Shelf Life | 3 Months |
| Package | 20Kg/Barrel |
FEATURE
Excellent moisture, acid, alkaline & abrasion resistance. It
protects cars against electrical shock & corrosion.
USER GUIDE
Determine the required solid content firstly, dilute the coating to
the required solid content with diluent which can be ethyl acetate.
Shake the drum for 2 minutes before use, check the mixing drum and
mixing plate to ensure that they are clean and free of gel. First
add coating to the mixing drum, then add diluent, final add the
adhesion promoter C-03 ( adding amount is 2-3% of dry glue). The
mixing time is 20~30 minutes. It must ensure that there is
sufficient shear speed (the recommended dispersion speed is 400-600
RPM). After mixing evenly, filter with a nylon filter screen of
about 400 mesh, and let it stand for defoaming.
After filtering with 0.1~0.5 um, pump it into the glue tank for
use.
Construction environment: relative humidity (RH): 20%-60%, ambient
temperature: 23 ± 2 ℃.
Coated on PET film or other films, the dry film thickness is
controlled at about 1um.
STORAGE
S-6103 must be sealed and stored in a dry, cool environment and
avoid direct sunlight. The storage temperature should be no more
than 35℃ and avoid open fire or heat source.
